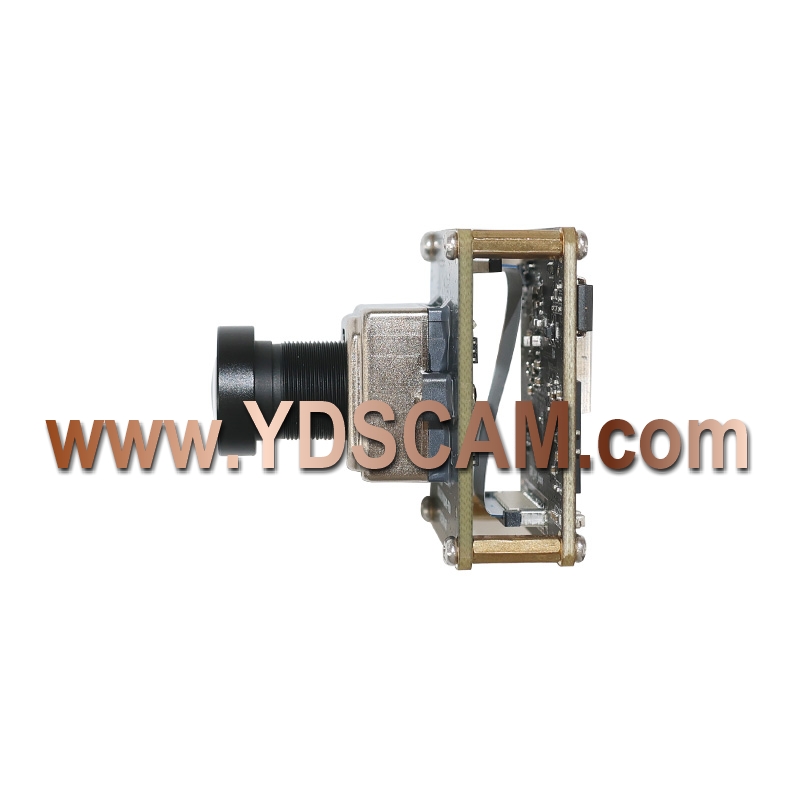

| 48MP Sony IMX586 M12 Auto Focus USB 2.0 Camera Module |
| Model No. YDS-USB-B2048M001 V1.0 |
| Camera Module No. |
YDS-USB-B2048M001 V1.0 |
| Resolution |
48MP |
| Image Sensor |
IMX586 |
| Sensor Type |
1/2.0" |
| Pixel Size |
0.8 um x 0.8 um |
| EFL |
8.00 mm |
| F.NO |
5.6 |
| Pixel |
8000 x 6000 |
| View Angle |
55.0°(DFOV) 45.0°(HFOV) 35.0°(VFOV) |
| Lens Dimensions |
20.00 x 20.00 x 26.60 mm |
| Module Type |
Auto Focus |
| Interface |
USB 2.0 |
| Output Format |
MJPG |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio |
Optional |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |
| PCB Size |
38.0 x 38.0 x 44.3 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC Driver
Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +70°C |
| USB Cable |
USB Cable |
|
